The Self-Capture Upload Portal can be accessed here.

Logging In

Your Siteaware login credentials will be used to access the portal.

All project team members who will be part of the Self-Capture process must be assigned as Self-Capture Specialists in the Project Permissions section of the Siteaware Platform.

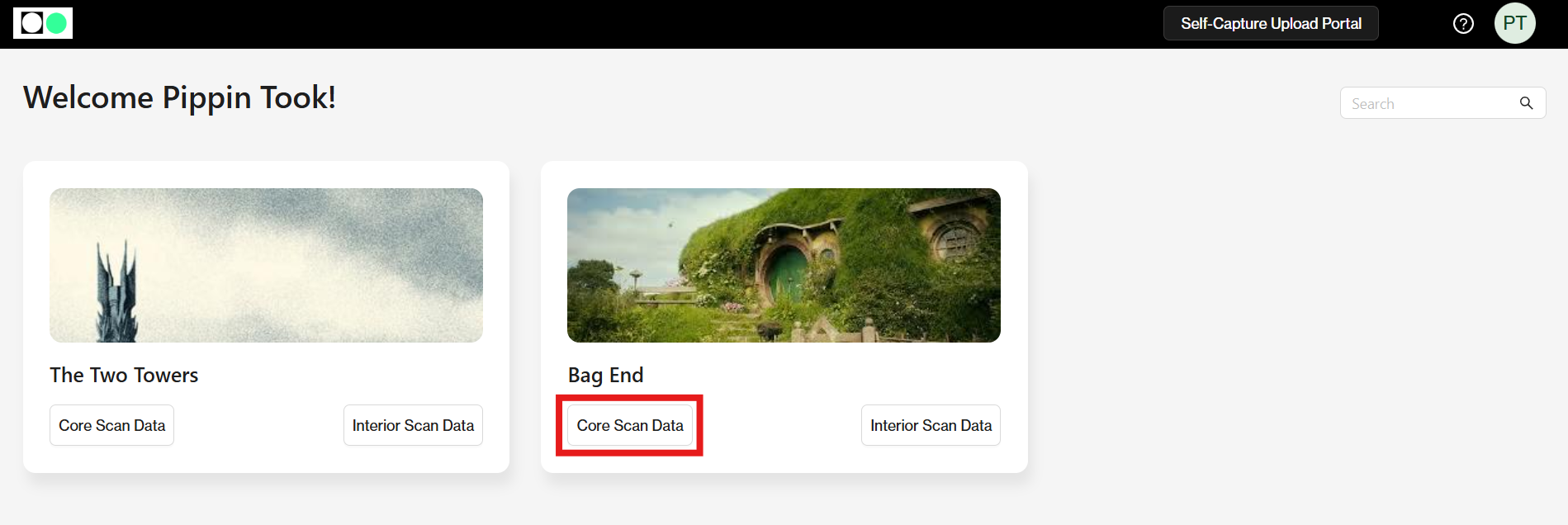

Project Selection Page

After logging in, users will be taken to the Project Selection Page, where they will see all of the projects for which they have been assigned as a "self-capture specialist".

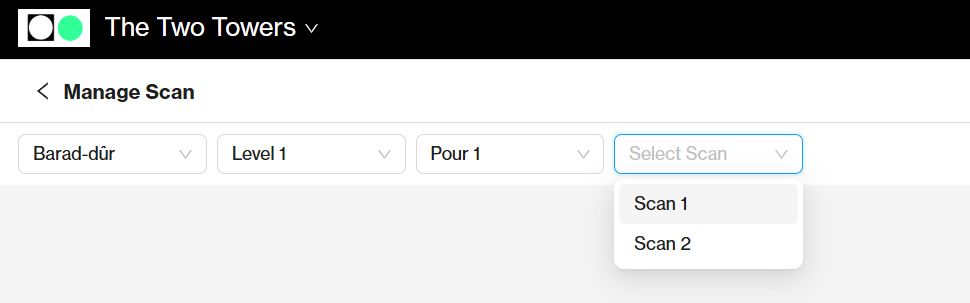

Clicking on Core Scan Data will take the user to the scan data page where they can navigate through the hierarchy to choose the scan for which they wish to upload data.

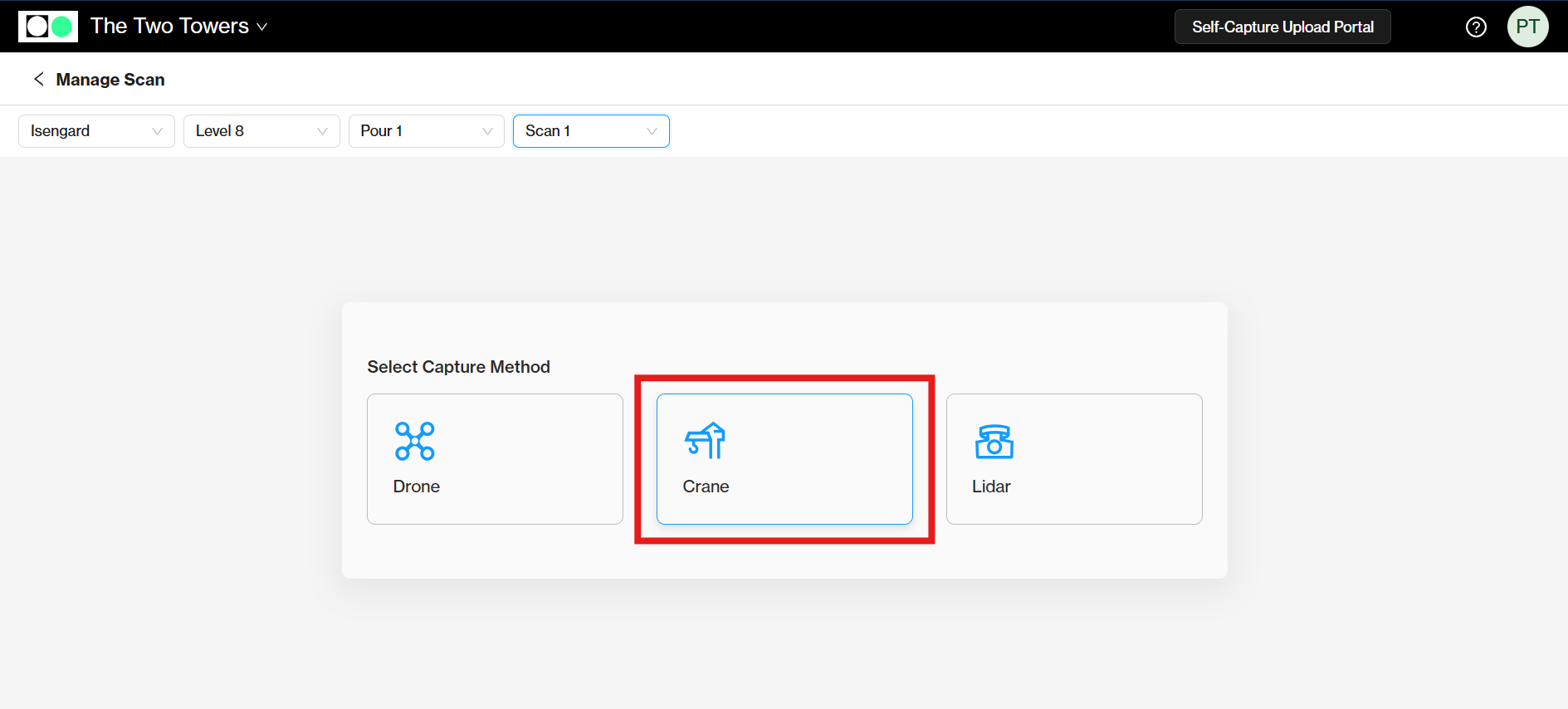

The first time that data is uploaded for a building, the user may be asked to select the capture method.

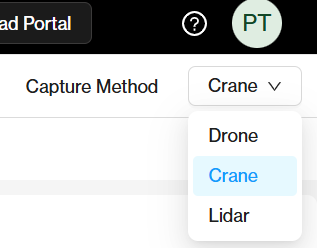

If your project changes capture methods mid-project, the capture method can be changed from the dropdown underneath your avatar:

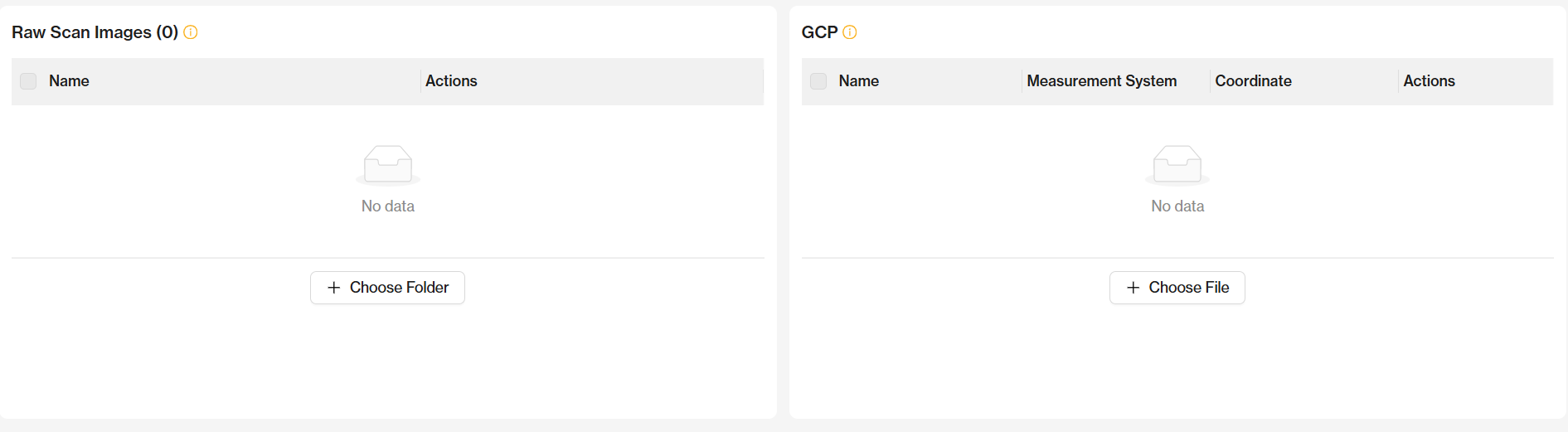

Users will then see two tables:

GCP

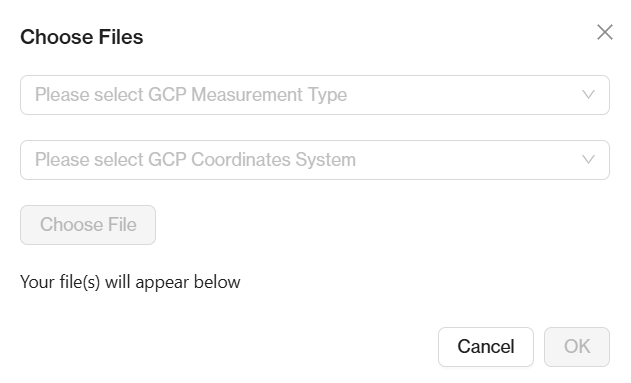

When clicking Choose File a pop-up will open. Clicking Choose File will open the file browser allowing the user to select the GCP file(s).

Any file format is accepted

The user will be asked to choose a measurement type and coordinate system

Measurement Type Definitions:

Total Station- The points were measured with a Total Station.

RTK - The points were measured with a GPS-based measuring tool.

Gridlines - The points were placed at a designated offset fro.m the control grids (i.e. 1’ x 1’ SE off of Col A1).

Unknown - It is unknown how the coordinates were measured.

Coordinate System Definitions:

Local - The points were measured in a project-specific coordinate system (i.e. Based on A1 being 1000,1000)

Global - The points were measured in a WGS coordinate system (Coordinates will be similar to 7255917.330,2542665.775)

Unknown - It is unknown what coordinate system was used to measure the coordinates.

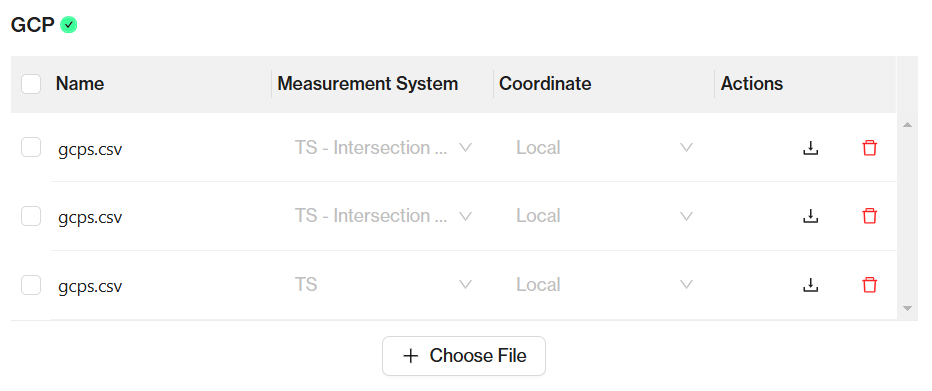

After the upload is complete, the files will appear in the table.

Raw Scan Images

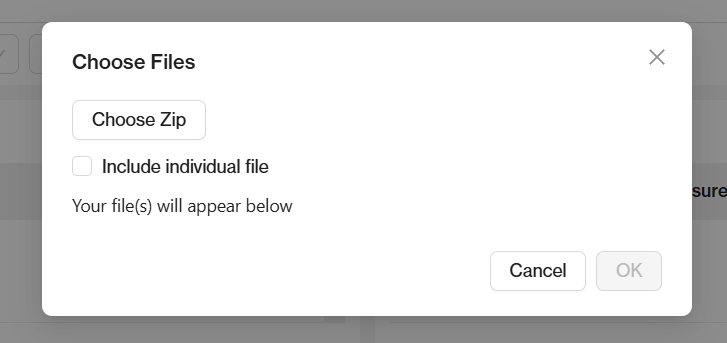

To upload images, select Choose File

Users can then upload either a .zip file or individual images.

Please Note: No coverage map will be produced when uploading via the Upload Portal and the data will NOT be filtered which may lead to longer upload processing times.

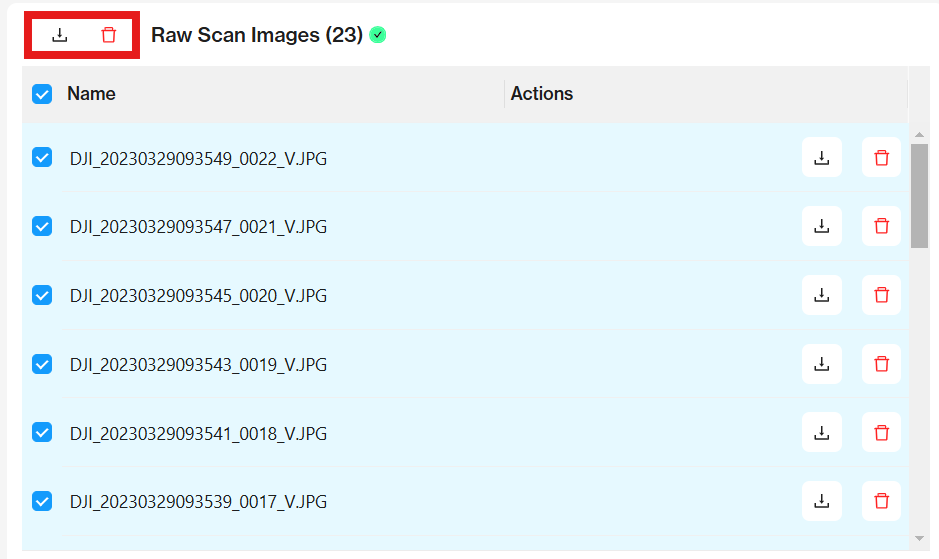

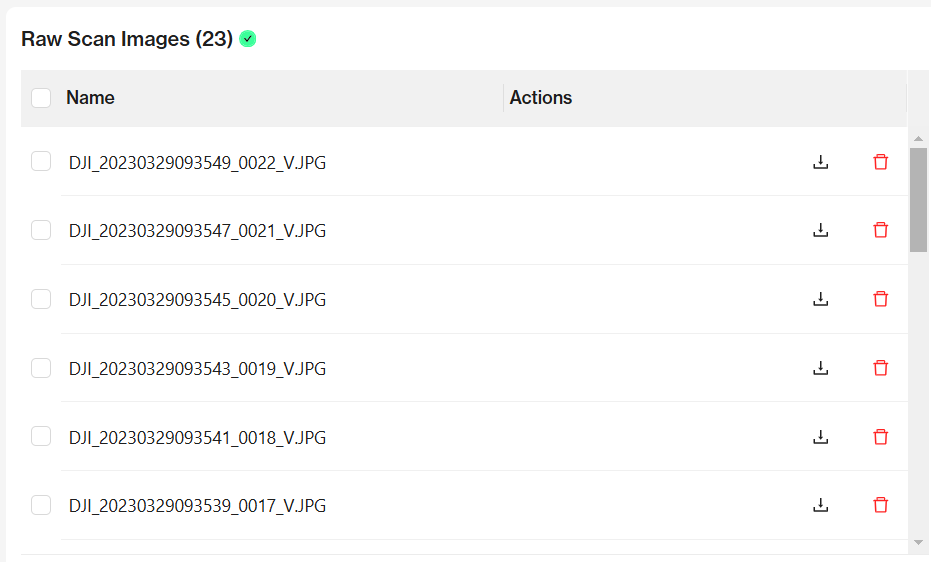

Once the upload is complete users will see their scan data in the table
