Step 4: Upload the NavVis Scan Data

1. After completing the scan. remove the drive and insert it into a computer.
2. Upload the data to Siteaware via the Self-Capture Upload Portal

   The Self-Capture Upload Portal can be accessed here.

   Logging In

   Your Siteaware login credentials will be used to access the portal.

   All project team members who will be part of the Self-Capture process must be assigned as Self-Capture Specialists in the Project Permissions section of the Siteaware Platform.

   Project Selection Page

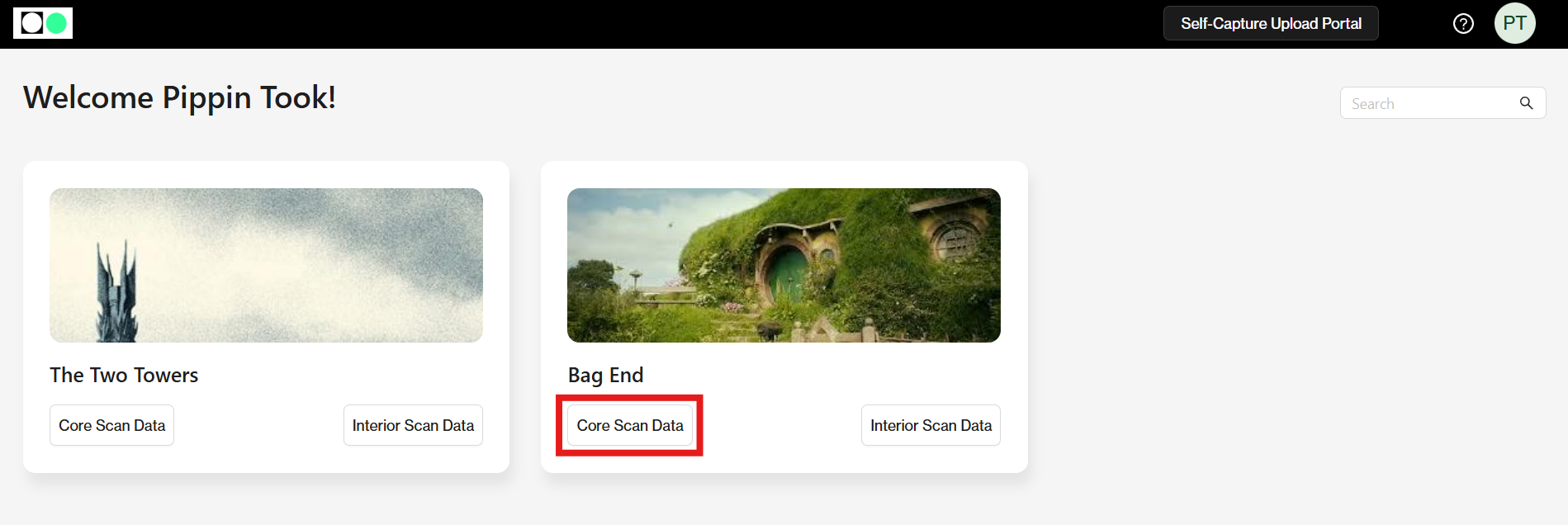

   After logging in, users will be taken to the Project Selection Page, where they will see all of the projects for which they have been assigned as a "self-capture specialist".

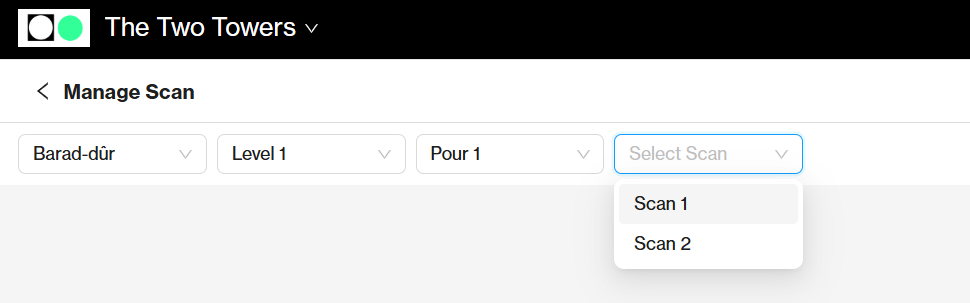

   Clicking on Core Scan Data will take the user to the scan data page where they can navigate through the hierarchy to choose the scan for which they wish to upload data.

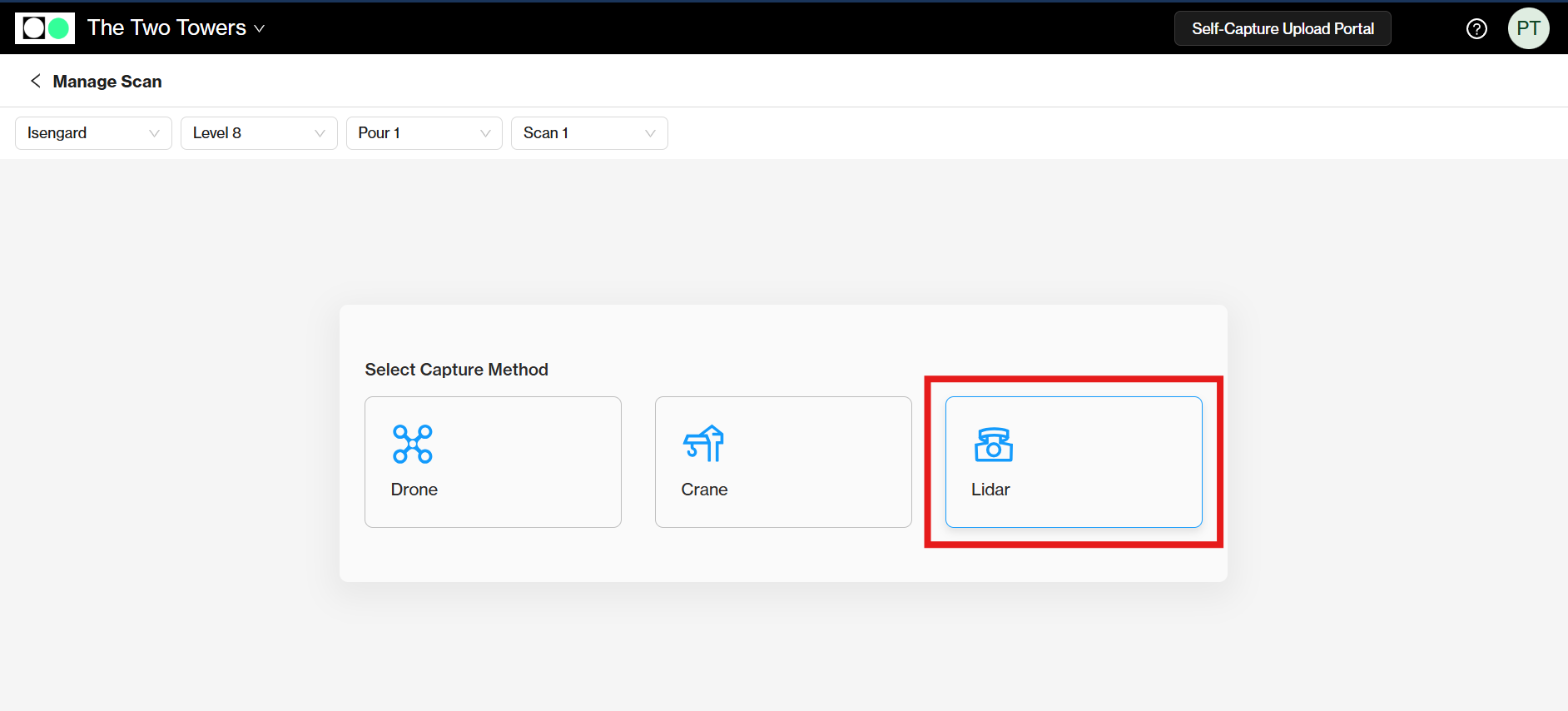

   The first time that data is uploaded for a building, the user may be asked to select the capture method.

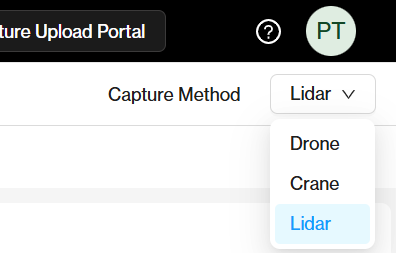

   If your project changes capture methods mid-project, the capture method can be changed from the dropdown underneath your avatar:

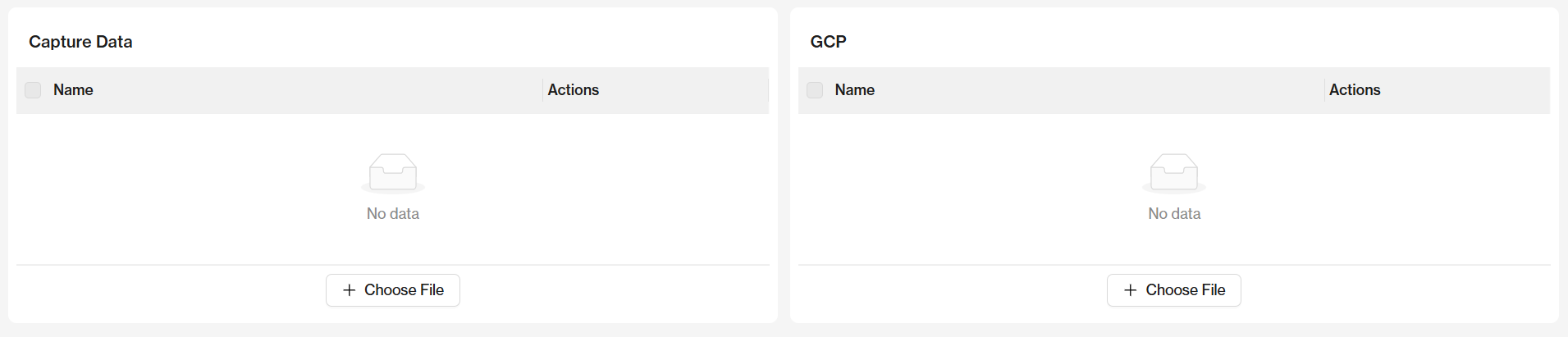

   Users will then see two tables:



   Capture Data

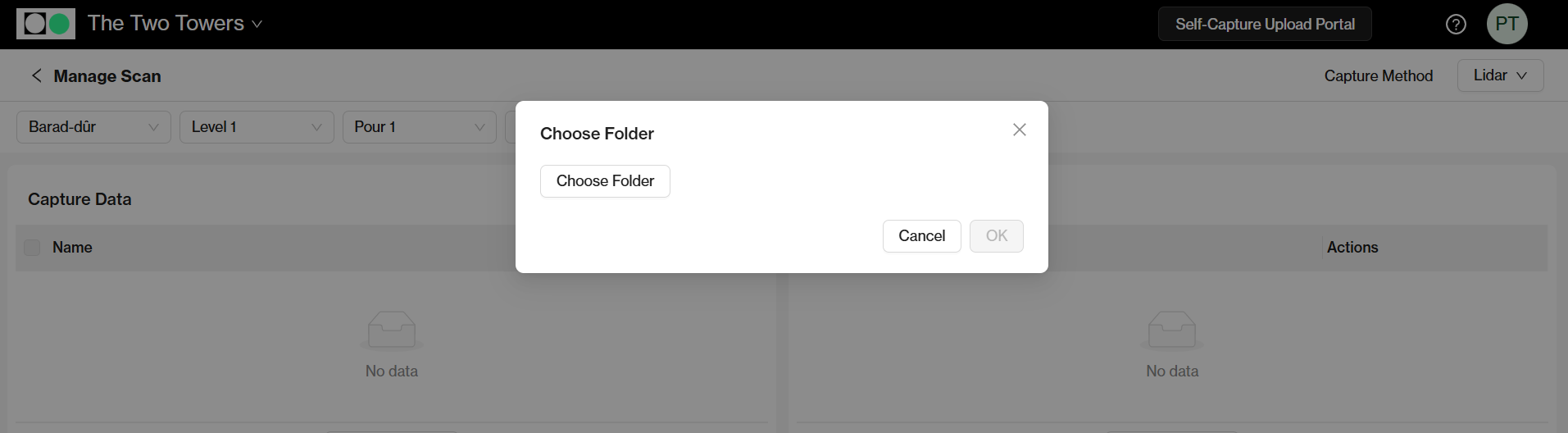

   When clicking Choose File a pop-up will open. Clicking Choose Folder will open the file browser allowing the user to select the scan data folder.

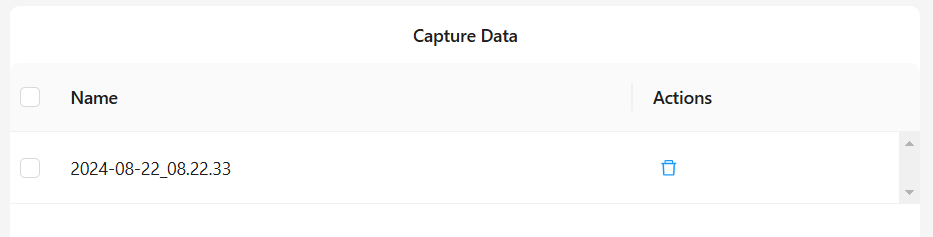

   Once the upload is complete users will see their scan data in the table
